Class Name: Geometry Oct Tree Data

Superclass - Base Oct Tree Data

Definition

The geometry-specific sub-class of Base Oct Tree Data, used to distinguish sibling Geometry Hierarchy entries within an Oct_Tree_Related Geometry aggregation.

Primary Page in DRM Diagram:

Secondary Pages in DRM Diagram:

Example

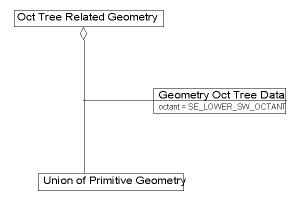

  1. Consider an Octtree that is represented in a transmittal by an Oct Tree Related Geometry object. The lower left octant of the Octtree is a Union of Primitive Geometry aggregated by the Oct Tree Related Geometry as follows:

    Geometry Oct Tree Data, Example 1

FAQs

--FAQs needed here --

Constraints

None.

Inherited Field Elements

SE_OCTANT_ENUM octant; (notes)

Notes

Fields Notes

octant

 indicates which octant this object belongs to
