Class Name: EDCS Use Summary Item

Superclass - SEDRIS Abstract Base

Definition

Summarizes a classification (i.e. a ECC and a set of EACs used with it) that is used within a transmittal.

An EDCS Use Summary Item aggregates a Classification Data and a list of Property Descriptions (i.e. the ECC and associated EACs) that defines an "overall" classification. An EDCS Use Summary Item can also have a textual description giving an abstract, human-readable description of this "overall" classification. This can be blank.

Primary Page in DRM Diagram:

• 20

Example

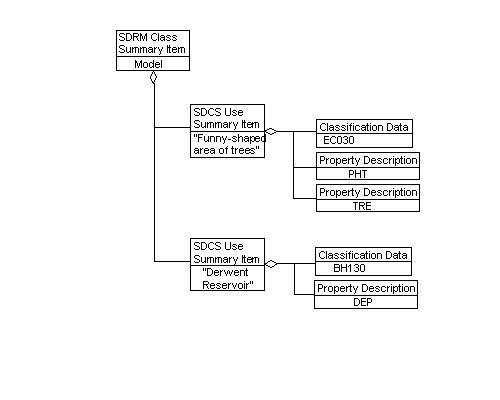

1. A transmittal containing two different Models, one classified using EDCS_CC_TREESwith attributes and the other using EDCS_CC_RESERVOIR with attributes.

FAQs

Constraints

Composed of (one-way)

• optionally, a Classification Data
• optionally, some Property Descriptions

Component of (two-way)

• optionally, some Base Summary Items
• optionally, a Transmittal Summary

Field Elements
