Class Name: Quad Tree Related Geometry

Superclass - Aggregate Geometry

Definition

An aggregation of Geometry Hierarchies in which each component Geometry Hierarchy represents a branch of a Quad Tree. The quadrant represented by a branch is specified by the Geometry Quad Tree Data associated with that branch. The bounding region that the Geometry Hierarchy components occupy is defined by the Spatial Domain of the Quad Tree Related Geometry.

Primary Page in DRM Diagram:

• 4

Example

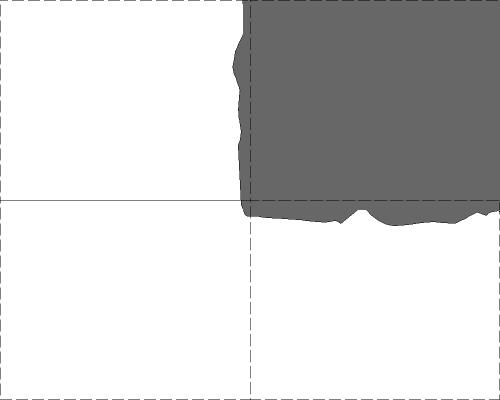

1. Consider a region of terrain that is organized into quadrants, where the upper-right quadrant consists of ocean, and the other three quadrants consist of the terrain bordering the ocean. The ocean quadrant is not represented in the producer's system. The region is represented in SEDRIS by a Quad Tree Related Geometry with 3 component Union of Primitive Geometries. (Since the remaining quadrant had no Polygons, it was not represented.)


FAQs

If a Quad Tree Related Geometry has less than 4 components, why is the data being organized under a Quad Tree Related Geometry at all?

A Quad Tree Related Geometry is used when an object in the hierarchy contains spatial components that occupy a certain quadrant. These quadrants might not contain Primitive Geometry, which is why this class can have less than four components.

Where is the Spatial Domain component?

Quad Tree Related Geometry automatically has a Spatial Domain component, component, because it is a Geometry Hierarchy. Unlike Geometry Hierarchies in general, however, Quad Tree Related Geometry has a business rule stating that the Spatial Domain component is mandatory.

Constraints

• No Attribute Conflicts
• Non Crossing Aggregations
• Non Cyclic Aggregations
• Precedence of Attribute Set Index
• Non Crossing Associations
• Color Mapping Restrictions
• Image Mapping Functions and Texture Coordinates
• Distinct Link Objects
• Quad Tree Spatial Domain

Associated by (one-way)(inherited)

• optionally, a Hierarchy Summary Item
• optionally, some Reference Surfaces

Associated with (two-way)(inherited)

• optionally, some Features
• optionally, some Geometry Hierarchies

Composed of (one-way)(inherited)

• optionally, some {ordered} Attribute Set Indices
• optionally, a Classification Data
• optionally, some Property Tables
• optionally, some Property Table References
• optionally, some Property Values
• optionally, a Reference Surface
• optionally, some Sound Instances
• optionally, a Spatial Domain
• optionally, a Bounding Volume
• optionally, a Center of Buoyancy
• optionally, a Center of Mass
• optionally, a Center of Pressure
• optionally, some Collision Volumes
• optionally, a Conformal Behavior
• optionally, a LSR Transformation
• optionally, an Overload Priority Index
• optionally, some Property Descriptions
• optionally, a Stamp Behavior
• optionally, some {ordered} Colors
• optionally, a Light Rendering Properties
• optionally, a Rendering Properties
• optionally, some {ordered} Image Mapping Functions
• optionally, a Rendering Priority Level

Composed of (two-way)(inherited)

• optionally, some Hierarchical Tables
• optionally, some Light Sources

Composed of (two-way)

• a bounded set of Geometry Hierarchies[1..4] through Geometry Quad Tree Data

Composed of (one-way metadata)(inherited)

• optionally, a Time Constraints Data
• optionally, an Access
• optionally, some Browse Graphics
• optionally, some Cross References
• optionally, a Data Quality
• optionally, a Keywords
• optionally, a Point of Contact

Component of (two-way)(inherited)

• optionally, some Alternate Hierarchy Related Geometries through Geometry Hierarchy Data
• optionally, some Animation Related Geometries
• optionally, some Classification Related Geometries through Geometry Classification Data
• optionally, an Environment Root
• optionally, some Geometry Separating Plane Relations through Geometry Separating Plane Data
• optionally, a Geometry Model
• optionally, some Level of Detail Related Geometries through Geometry Level of Detail Data
• optionally, some Oct Tree Related Geometries through Geometry Oct Tree Data
• optionally, some Time Related Geometries through Geometry Time Constraints Data
• optionally, some Perimeter Related Geometries through Geometry Perimeter Data
• optionally, some Quad Tree Related Geometries through Geometry Quad Tree Data
• optionally, some Spatial Index Related Geometries through Geometry Spatial Index Data
• optionally, some State Related Geometries through Geometry State Data
• optionally, some Union of Geometry Hierarchies

Inherited Field Elements

Notes

Fields Notes

unique_descendants

 If SE_TRUE, then for any object that exists 'below' this aggregation,
 each object will appear in only one 'branch' of this aggregation.
 If SE_FALSE, then objects may appear in multiple 'branches' of this
 aggregation.

independent_topologies

 If SE_TRUE, then each 'branch' from this aggregation is its own,
 independent topology.  If SE_FALSE, then all of the branches exist
 within the same topology.

strict_organizing_principle

 If true, then each 'branch' strictly follows the rules of this
 aggregation.  If false, then each 'branch' might bend the rules a bit.
 For example, if this is a spatial aggregation, than a value of true
 indicates that objects will *not* cross the spatial extents defined
 by this aggregation relationship, and a value of false indicates
 that objects might cross those bounds.  For another example, if this
 is a time-based aggregation, then a value of true indicates that all
 branches will only contain data valid for the times specified for
 each branch, and a value of false indicates that the branches have
 the option of including data that falls outside of the specified
 time ranges for that branch.
